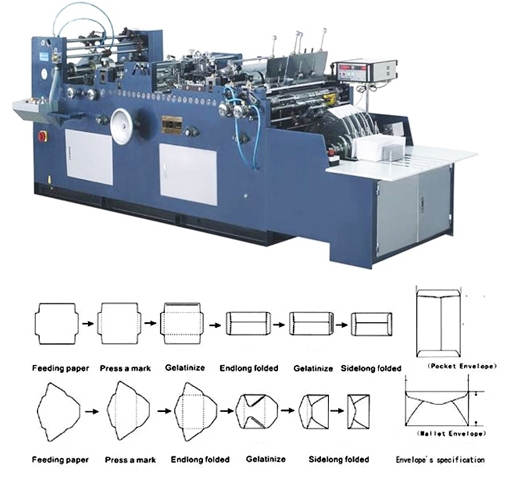

Reliable sheet separation of the air-suction bottom feeding system with automatic feeding of non-stop operation of the equipment; easy regulation of the positioning structure of the paper with accurate positioning; ensuring the precision of finished products regarding the parts of vertical and cross creasing under the high-speed running of the machine; rotary sizing applicable for any forms of glue lines; provided with the folder for the suction roller for the stable production in a high-speed state; visible and accurate regulation of the dial under the condition of fine adjustment; mounted with electric counter and automatic delivery unit on the collecting part.
TECHNICAL SPECIFICATIONS:
|
MODEL |
LI-398 |
LI-408 |
|
Max. size of finished envelope |
324x229mm |
380x280mm |
|
230x162mm |
230x162mm |
|
|
Min. size of finished product |
85x85mm |
100x100mm |
|
Sheet gram |
70-150g/m |
270-150g/m2 |
|
Max. working speed |
10000pcs/h |
10000pcs/h |
|
Motor power |
2.2kw |
3kw |
|
Air pump power |
3kw |
5kw |
|
Weight of machine |
:1800kg |
2600kg |
|
Dimension |
:360x92x115cm |
480x120x130cm |
NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).
NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
