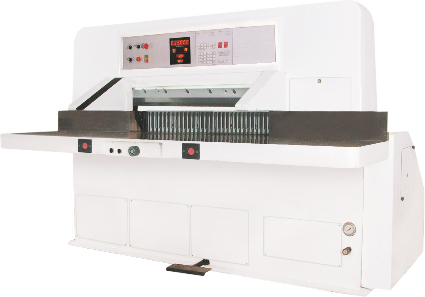

HYDRAULIC PROGRAMMABLE PAPER CUTTING MACHINE

SAFETY

Overload bolt to avoid serious damage.

Dual switch operation required both hands tobe used for cutting cycle.

Two raw 08 bems infra-red curtain in front of cutting zone to avoid accident with row selection facility.

MACHINE DESIGN

Streamline box type design of parts and high grade of material

Box designed full length machine base for perfect load separation

Inbuilt hydraulic & electrical ensures safe running & low space requirement

Positive drive hydraulic clutch ensure quick action less wear & tear & long clutch system life

Almost sound less compact gear box having oil deeped warm gears fitted with tapper roller thrust bearings & high grade bushing.

HYDRAULIC

Telescopic double pressure cylinder with almost pipeless powerpack

Power pack inbuilt in machine base & not required & any extra motor

Complete hydraulic clutching device for less maintenance & seepage free operation with instant stop

Fully adjustable clamping pressure can be adjustable from 400kg to 3500kg as per requirement of cutting job.

BACK GAUGE

Running on precision grounded guides for speedy & precise movement * the backgauge is driven by frequency controlled ac motor with auto speed adoption for linear movement * unidirectional positioning approach to eliminate, backlash horizontal & vertical right angel setting buy knowb only

Calibration accuracy of ± 0.001 cms.

Optional / extra air table on main table & side table for easy movement of bulky stocks

NOTE:

Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).

NOTE:

Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.

ELECTRICAL

All controls are operated buy 12 v only.

All operations are controlled buy single card only no use of extra hydraulic motor & electro magnetic clutch & break wich save power.

PROGRAMME FETURES:

1) Programmes : cut & store lable cutting
2) Programme storage : no programmes 99 no. of cuts in each programmes 50*
3) Programme help : calculation function
4) Auto selection of first blank programme*
5) Increase & descrease of steps 30
6) Auto cut & u-turn
7) Computer bypass for manual cutting
8) Remote programming flush type, dust proof, feathers.
9) Touch keyboard for smooth operation*
10) Symbolic key easy to understand
11) User friendly programming features.

STANDARD ACCESSORIES

Cutting line indicator
Hard cromed side gauge plate left & right hand
Knife changing kit
Flase clamp ( for remove of clamping impression)
02 knives & 04 cutting sticks
Oil can, grease gun & all operational toll
Operational manual of machine 01 cutting line bulb 02 overload stud.

TECHNICAL SPECIFICATIONS:

TECHNICAL DATA	UNIT	72	95	107	115
CUTTING WIDTH	MM	720	950	1070	1150
CLAMP OPENING	MM	100	130	130	165
WORKING DEPTH OF TABLE (REAR)	MM	720	950	1070	1150
CLAMP PRESSURE MINIMUM	Kg.	200	450	450	900
CLAMP PRESSURE MAXIMUM	Kg.	1250	3000	3000	4000
RESIDUAL CUT	MM	20	25	25	30
BLACK GAYGE SPEED (EXPRESS)	MM/SEC.	200	200	200	200
TOTAL POWER	H.P.	5	6	6	7
WEIGHT (APPROX)	Kg.	2000	3000	3000	4000

NOTE: Machine Performance & Life depends on the operator skill & handling. As our Policy is to bring in continuous improvement, illustration are not binding to details. This is general Product Catalogue not a contract (Subject to Ahmadabad Jurisdiction only).

NOTE: Electrical - Electronic Parts of the machine are not under guarantee or warranty. Proper electrical fittings & conditions are mandatory to avoid electrical problems.
